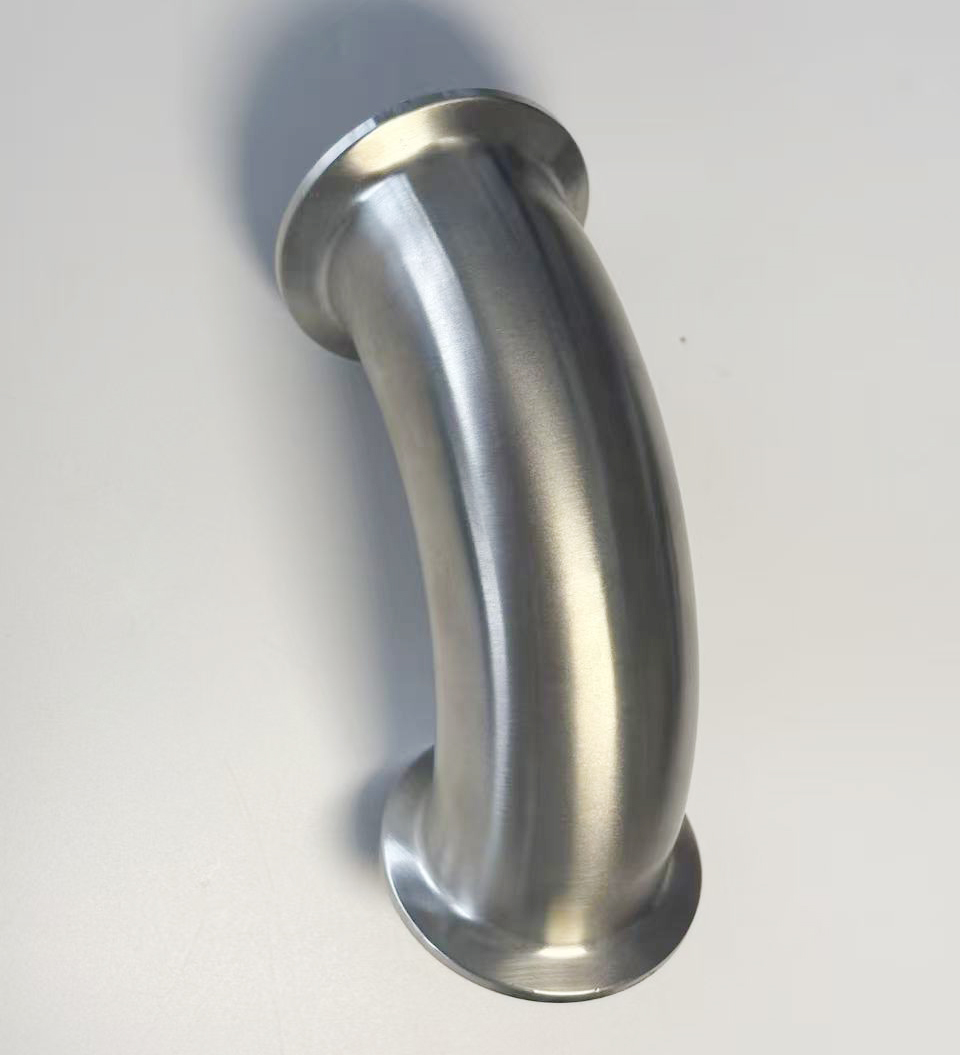

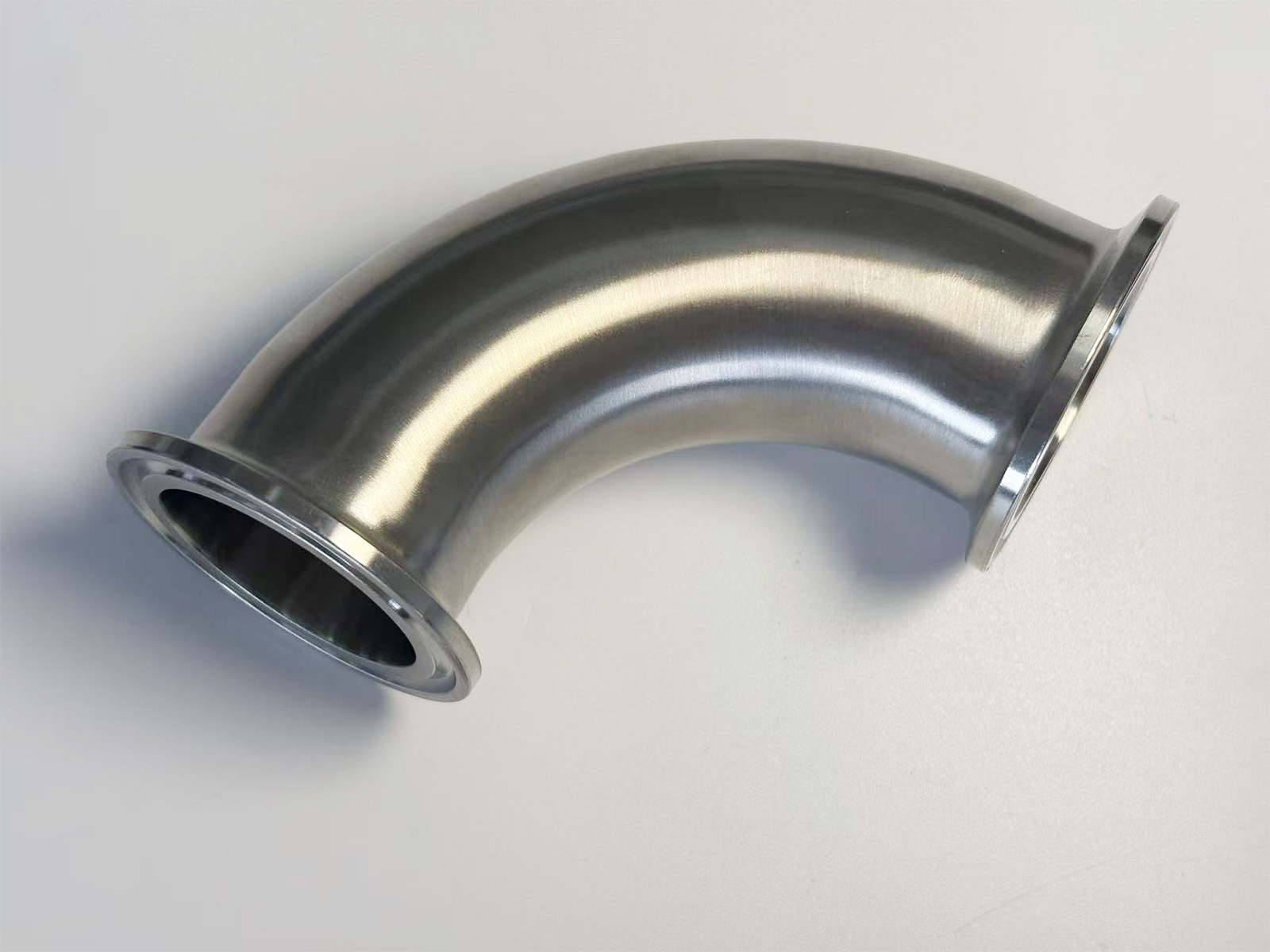

The Sanitary 90° Clamped Elbow is a key fitting used to connect stainless steel tubes at a right angle in sanitary piping systems. It is manufactured according to 3A, DIN, SMS, ISO, and BS standards, ensuring compatibility and high hygiene levels. The available size range typically covers 1/2" to 6" (or DN15–DN150).
Made from high-quality stainless steel grades 304 and 316L, the elbow offers excellent corrosion resistance and durability. The surface finish is usually mirror polished (Ra ≤ 0.8 μm) inside and outside, meeting sanitary requirements.
| Material | Stainless Steel 304 316L | |||
| Certificate | ISO / AEO/ MTC/PED | |||

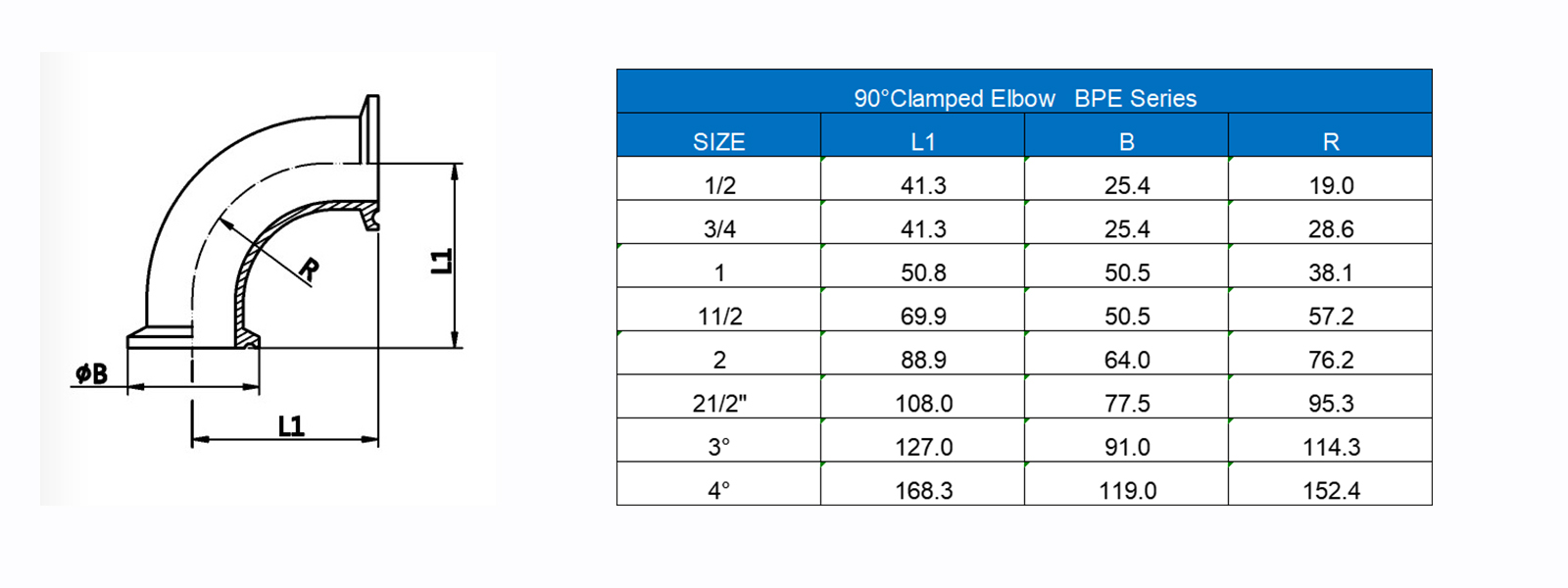

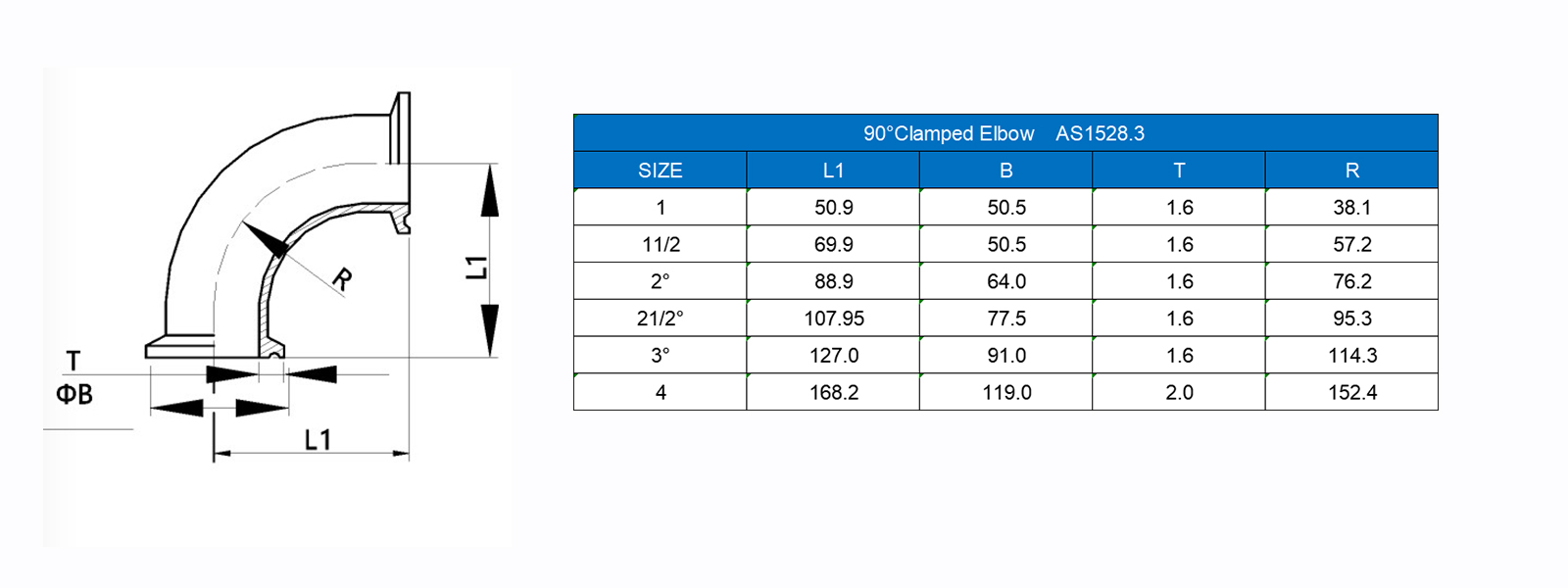

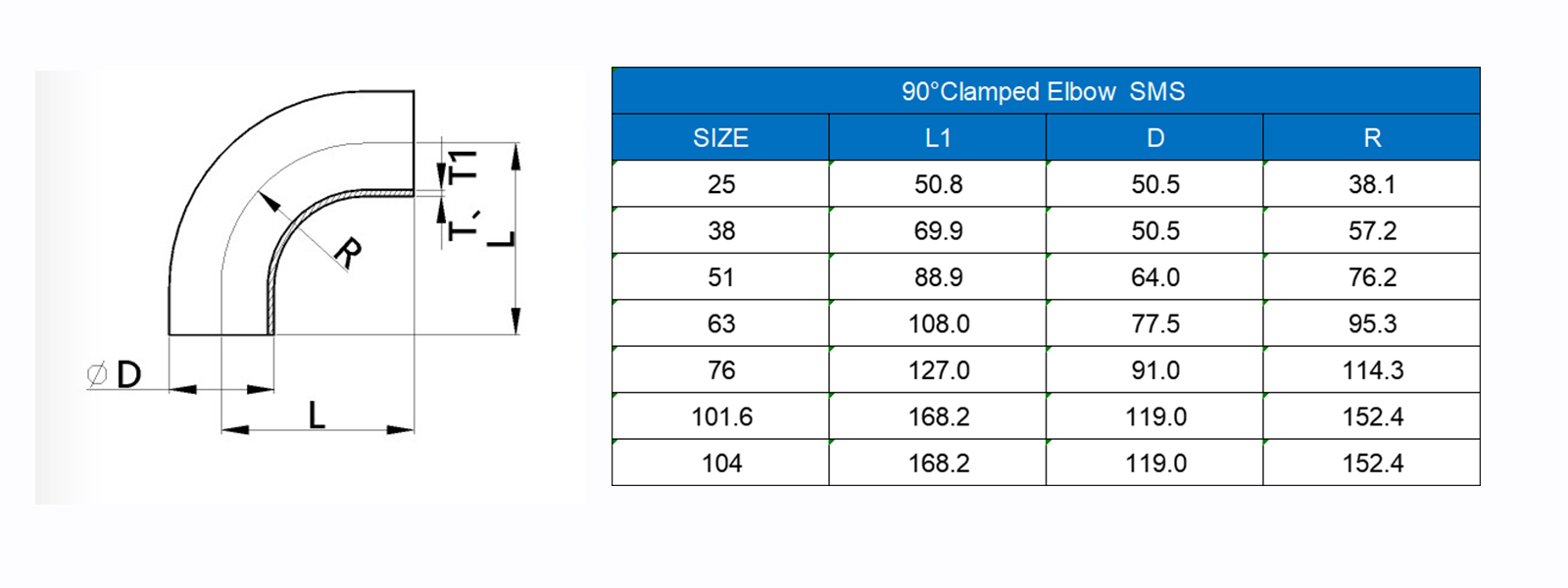

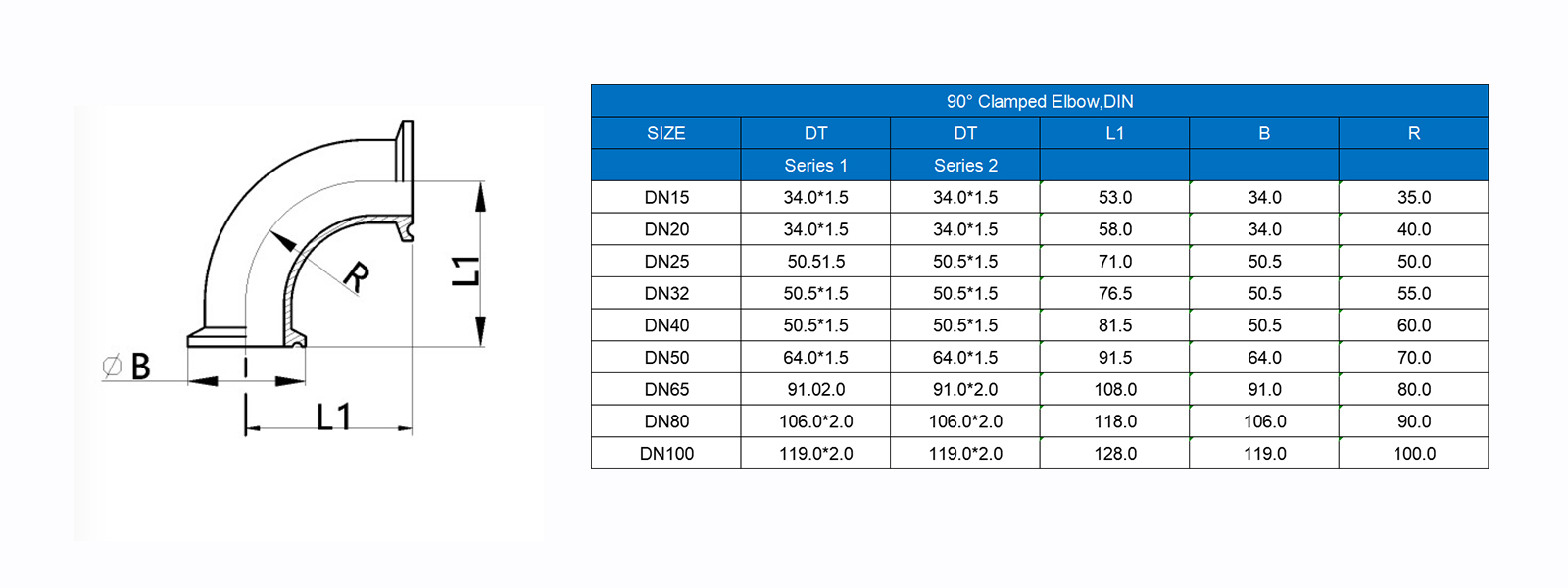

| Size | See the figure below | |||
| Surface | Polishing | |||
| Thickness | 1.5mm,1.65,2.0mm | |||
| Standard | 3A,AS 1528.3 , DIN, BPE | |||
| Delivery Time | 35 days | |||
| Payment Terms | T/T, LC, Cash, etc. Normally 30% by T/T in advance, balance to be paid before shipment. | |||
| Packing | Each fittings will be packed in a plastic bag, then several fittingss will be packed in carton boxs | |||
| Application | Apply in food, beverage, dairy, pharmaceutical, and biotechnology industries | |||
Foshan Vinmay Stainless Steel Co., Ltd. is a large-scale international enterprisewhich concentrates on producting stainless steel welded tubes and the related fittings. As a key partner for global stainless steel welded tube distributors, Vinmay serves the top importer of ss welded tube all over the world. We are committed to assisting our customers in becoming the top distributor in their country or worldwide.
