Sanitary Short Welded Tee

Category
Stainless Steel Sanitary Fittings
Standard
SMS / DIN / 3A/ ISO

A sanitary short welded tee is a stainless steel fitting used to join three sections of sanitary tubing at a 90-degree angle. It features short weld ends on all sides, allowing for easy and secure welding installation in hygienic piping systems. This type of tee is widely used in food, dairy, beverage, pharmaceutical, and biotech industries where smooth surfaces and cleanability are essential. The short welding ends help reduce space usage and ensure a compact, sanitary connection.

Technical Parameters

MaterialStainless Steel 304 316L
CertificateISO / AEO/ MTC/PED
SizeSee the figure below
SurfacePolishing
Thickness1.5mm,1.65,2.0mm
Standard3A,ISO, DIN, BS
Delivery Time35 days
Payment TermsT/T, LC, Cash, etc. Normally 30% by T/T in advance, balance to be paid before shipment.
PackingEach fittings will be packed in a plastic bag, then several fittingss will be packed in carton boxs
ApplicationApply in food, beverage, dairy, pharmaceutical, and biotechnology industries

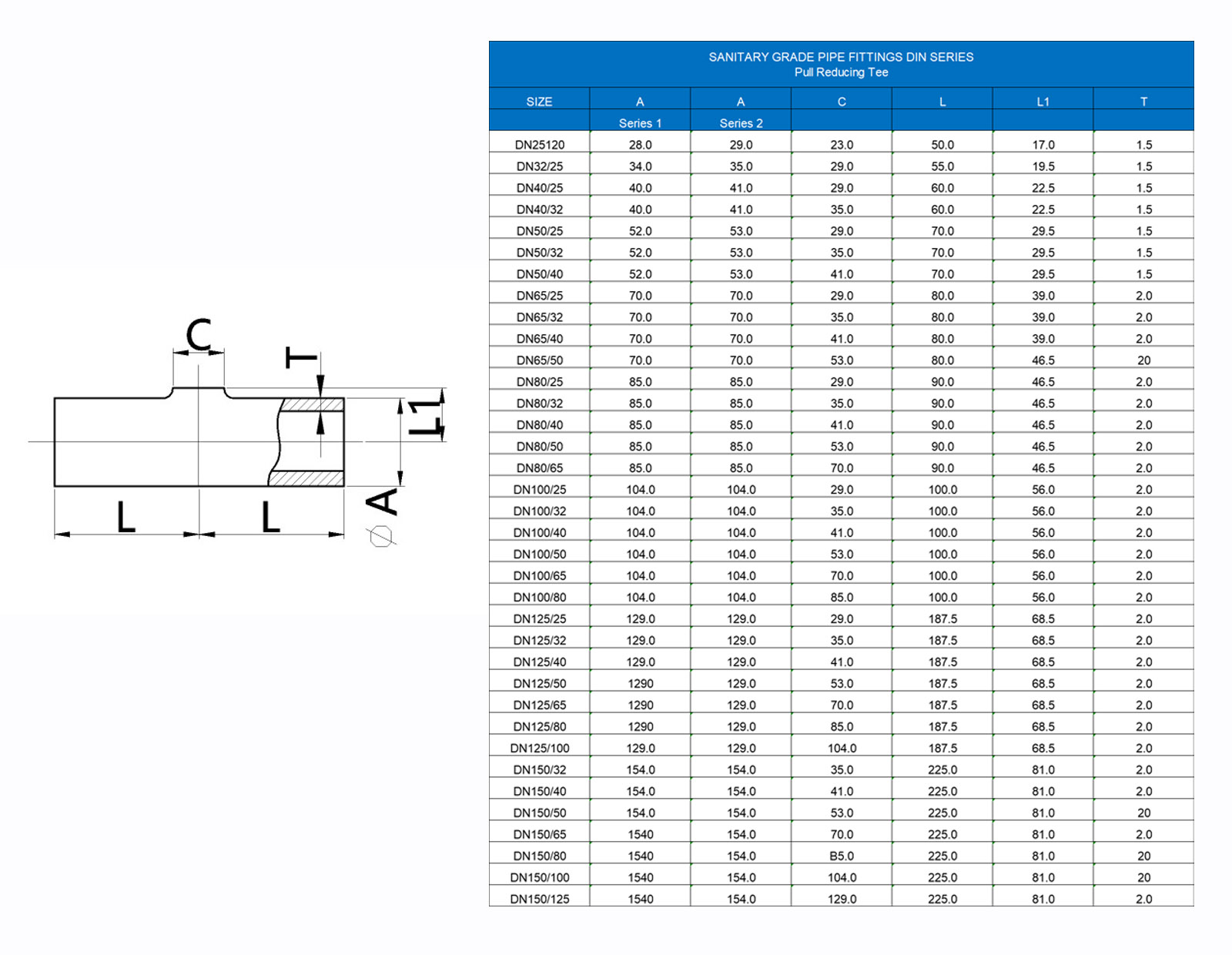

 DIN SERIES

DIN series

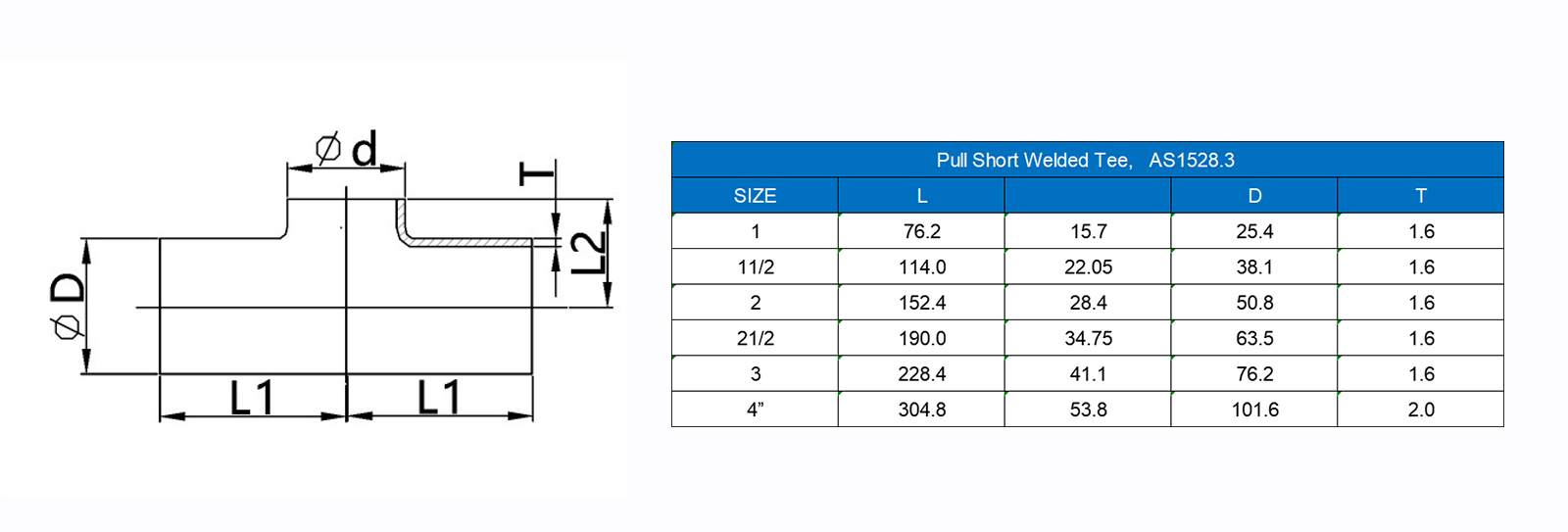

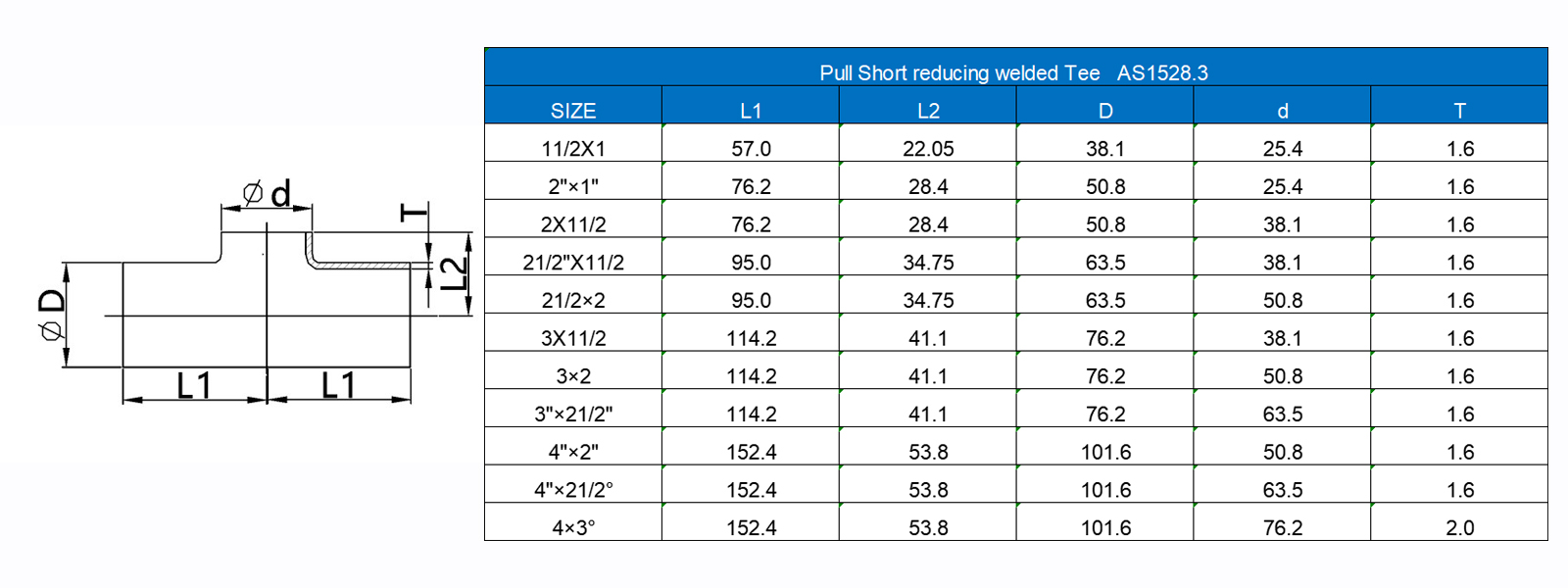

 AS SERIES  AS 1528.3

as-1528.3 short welded teeAS 1528.3

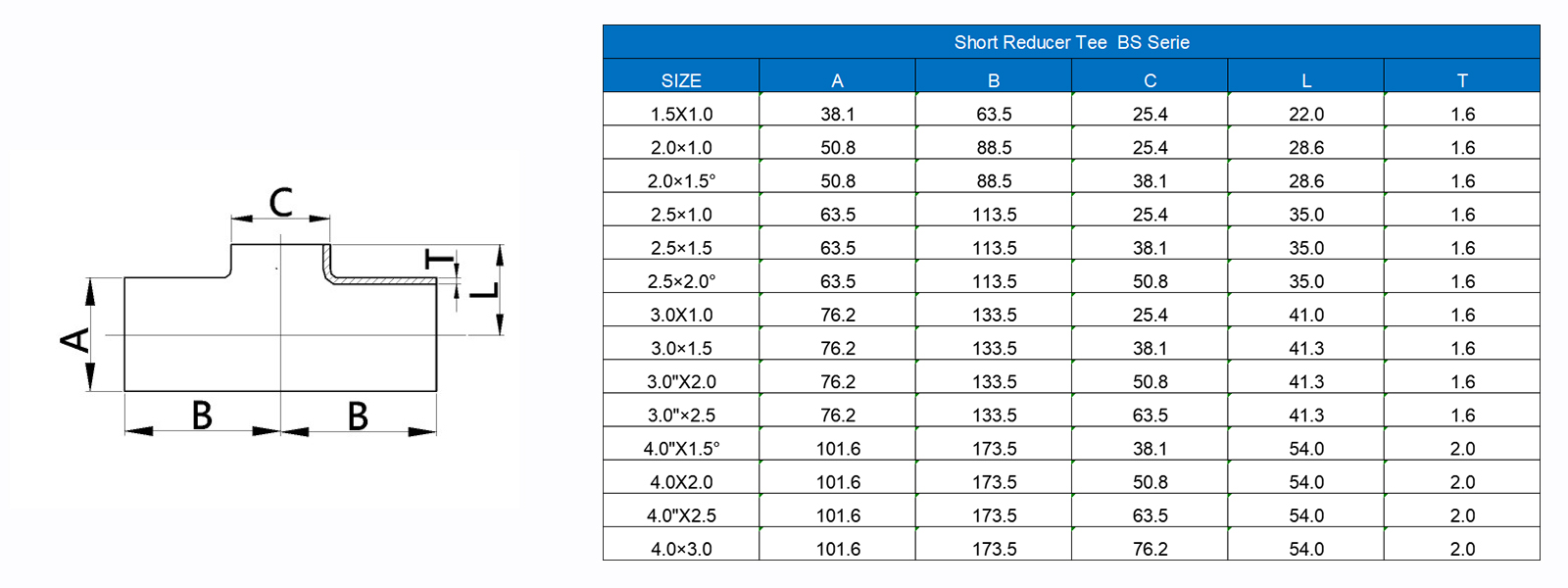

 BS Series

BS series short welded tee

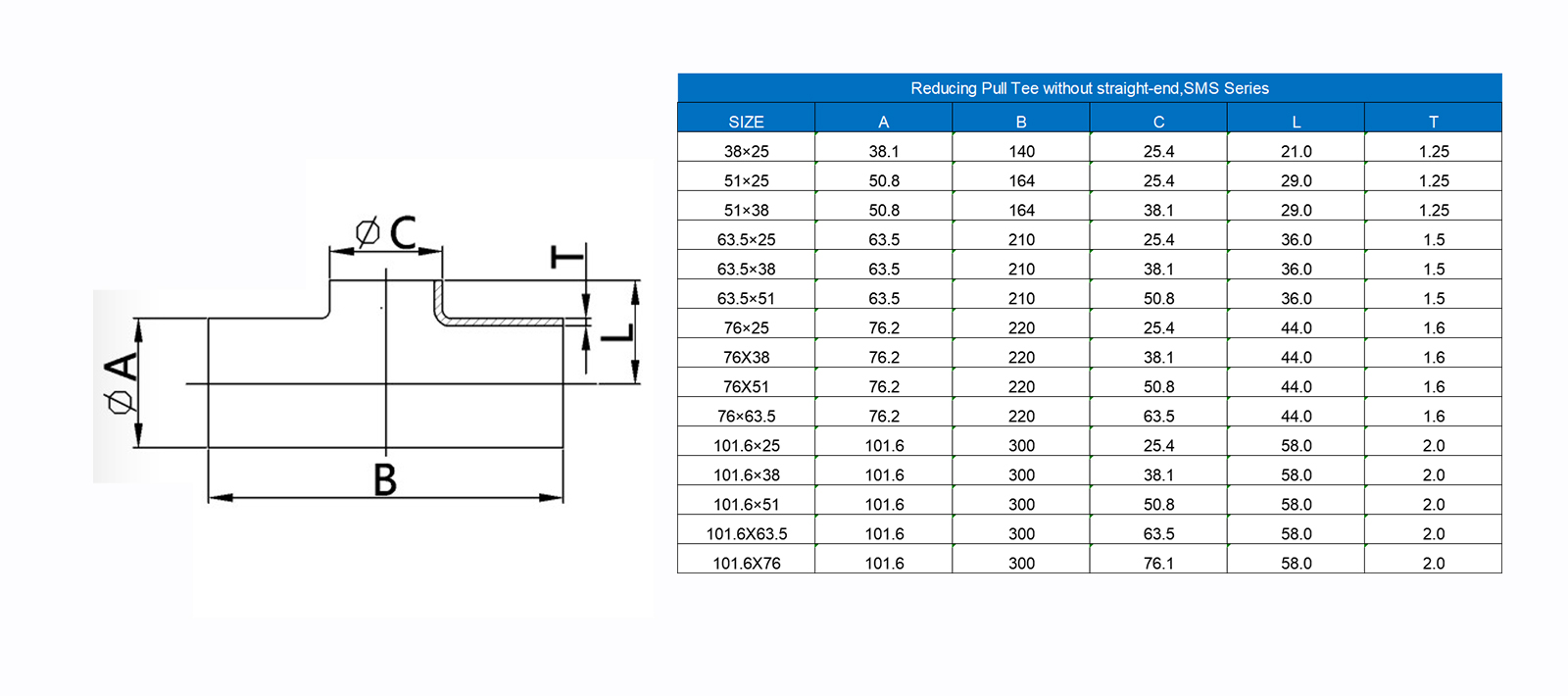

 SMS Series

sms series

 Manufacturing Center

vinmay sanitary fittings production

 Quality Inspection

vinmay quality inspection

 Packaging

Inner packaging
packaging
Outer packaging
Loading

Sanitary Stainless Steel 90 °Elbow Applications Showcase
